Description

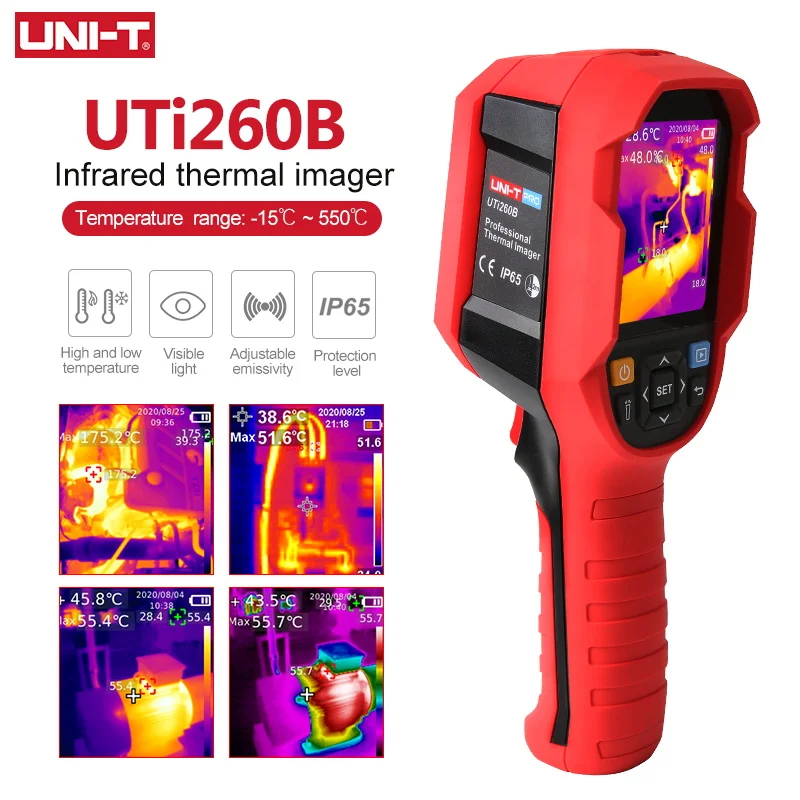

The UTi260B stands out as a flagship product within UNI-T’s heavy-duty series of thermal cameras. Offering a compelling blend of affordability and performance, it boasts an extensive temperature range from -20℃ to 550℃. This model excels with its superior IR resolution of 256×192 pixels, surpassing competitors in clarity and detail.

Key Features:

• Wide Temperature Range: -20℃ to 550℃ (-4℉ to 1022℉), catering to diverse applications.
• High Resolution: 256×192 pixels, ensuring precise thermal imaging.
• Versatile Display Modes: Thermal imaging, visual image, fusion, and picture-in-picture modes for enhanced analysis.
• Color Palettes: Choose from 7 color palettes including white hot, black hot, and rainbow for customized visualization.
• Customizable Temperature Measurement: Define up to 3 temperature measurement points, including center point, high and low temperature tracking, and key area temperature measurement (ROI).
• User-Friendly Design: Intuitive interface with LED fill light and LED alarm for enhanced usability.
• Robust Build: Achieves IP65 protection level and passes a 2-meter drop test, ensuring durability in challenging environments.

Technical Specifications:

1. Temperature Measurement Range: -15℃ to 550℃ (5℉ to 1022℉)
2. Temperature Measurement Accuracy: ±2℃ or ±2%, whichever is greater
3. Thermal Imaging Pixels: 256 x 192 (49152 pixels)
4. Visible Light Lens: 640 x 480 (exclusive to UTi260B)
5. Image Mode: Thermal imaging, thermal fusion, picture-in-picture, visible light

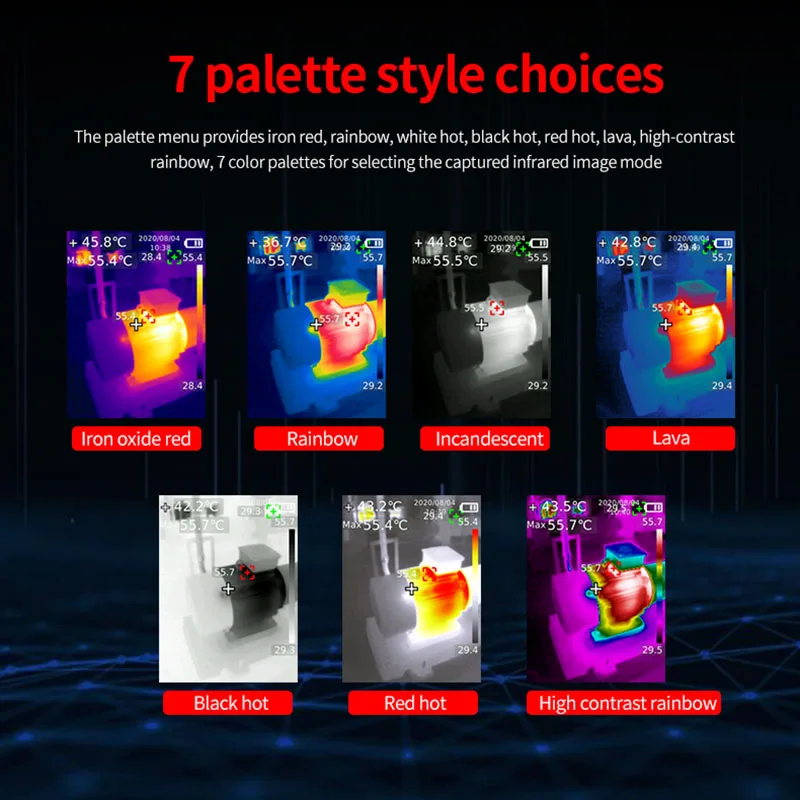

6. Color Palettes: White hot, black hot, iron red, lava, rainbow, high contrast rainbow, red hot
7. Customizable Temperature Points: Center point and 3 customized temperature points
8. Additional Features: PC analysis software, real-time image transmission
9. Protection Level: IP65
10. Drop Test: Passed 2-meter drop test

Experience superior thermal imaging with the UTi260B Heavy Duty Thermal Camera, engineered for precision and durability in demanding environments.
